Cable Overmolding: How Vertical Injection Molding Improves Reliability and Reduces Cost

In industries such as automotive, medical devices, industrial automation, and consumer electronics, the demand for reliable and durable cable assemblies has never been greater. Standard cable designs often fail when exposed to mechanical stress, moisture, vibration, or chemical environments. These failures not only create costly warranty claims but also damage a company’s reputation.

Cable overmolding has emerged as the solution. By molding a protective material—such as TPE, TPU, PVC, or silicone—directly over the cable and connector, manufacturers create assemblies that are stronger, longer-lasting, and better protected against environmental factors.

But while the benefits are clear, procurement and management teams must also consider how overmolding impacts business outcomes such as ROI, cost efficiency, and market competitiveness. This brings us to the broader business case for cable overmolding.

The Business Benefits of Cable Overmolding

To understand the value of overmolding, we must look at how it improves both product performance and financial outcomes:

1. Improved Product Reliability

   • Overmolded cables withstand pulling, bending, and abrasion.
   • Enhanced sealing (IP-rated protection) prevents water and dust ingress.
   • Better strain relief reduces connector failures.

2. Higher Market Value

   • Overmolded cables are seen as premium, high-quality solutions.
   • Enables manufacturers to serve demanding industries such as aerospace and medical.

3. Lower Lifetime Cost

   • Fewer product failures mean reduced warranty expenses.
   • More durable products strengthen brand reputation and customer trust.

4. Production Efficiency

   • Automated overmolding reduces manual labor.
   • Consistent quality minimizes scrap and rework costs.

In short, cable overmolding transforms cables from a commodity into a high-value product—while lowering total cost of ownership.

With these advantages established, the next question is what methods and equipment are available to perform cable overmolding effectively.

Cable Overmolding Methods Compared

There are different ways to implement cable overmolding, but not all equipment types deliver the same results. Understanding the strengths and weaknesses of each approach helps procurement managers and engineers make informed investment decisions.

Benchtop Overmolding Machines

• ✔ Affordable entry-level solution
• ✘ Limited throughput and capacity
• ✘ Suitable only for prototyping or very low-volume runs

Horizontal Injection Molding Machines

• ✔ Common in plastics industry, handles larger molds
• ✘ Bulky footprint, difficult mold loading for cable inserts
• ✘ Higher labor involvement, less efficient for cable assemblies

Vertical Injection Molding Machines

• ✔ Gravity-assisted insert placement ensures cables and connectors stay in place
• ✔ Faster mold changes reduce downtime
• ✔ Compact footprint saves factory space
• ✔ Easy integration with automation (rotary tables, shuttle systems, robotic arms)
• ✘ Slightly higher upfront cost, but offset by long-term efficiency

For manufacturers serious about scaling cable overmolding, vertical injection molding machines consistently deliver the best combination of reliability, efficiency, and cost-effectiveness.

This naturally leads us to an important question: what exactly are cable overmolding machines, and why are vertical models often preferred?

Cable Overmolding Machines: The Technology Behind the Process

To fully unlock the benefits of cable overmolding, the choice of equipment is critical. A cable overmolding machine is specifically designed to mold protective materials—such as TPE, TPU, PVC, or silicone—directly over cable assemblies and connectors. Unlike general-purpose injection molding equipment, these machines are optimized for insert molding, where cables must be precisely positioned before the molding cycle begins.

Among the available options, vertical injection molding machines have become the industry standard for cable overmolding. Their gravity-assisted design ensures stable cable placement, reduces the risk of misalignment, and simplifies automation with rotary tables or robotic arms. This makes them the ideal solution for manufacturers seeking both high reliability and cost efficiency in cable assembly production.

Learn more about our Cable Overmolding Machines here. For additional insights into machine selection, see our guide: Vertical Injection Molding Machine for Power Cord Molding: Factors to Consider.

By connecting the right machine to the right process, companies can begin to quantify the true return on investment (ROI) of cable overmolding.

Cable Overmolding Machine - KC series

Cable Overmolding Machine - KT series

ROI of Cable Overmolding with Vertical Injection Molding

Procurement leaders often evaluate investments through ROI and TCO (Total Cost of Ownership). Cable overmolding with vertical injection molding delivers strong financial justification:

• Reduced Scrap & Rework Costs

  → Higher first-pass yield

• Lower Labor Costs

  → Automation reduces manual handling

• Faster Production Cycles

  → More output per shift

• Lower Warranty Claims

  → Reliable products reduce after-sales costs

A typical manufacturer can see payback within 12–18 months by reducing labor dependency, improving yield, and lowering product failures.

To make this even clearer, let’s look at a real-world business case.

Business Case Example

Company Profile: A mid-sized industrial electronics manufacturer in Asia.

Challenge:

• High cable assembly failure rate with manual methods
• Slow throughput with small benchtop machines
• Rising labor costs and limited skilled operators

Solution:

• Adopted cable overmolding using a vertical injection molding machine with rotary table automation

Results:

• Production output improved noticeably within a few months
• Warranty returns declined significantly thanks to more consistent molding quality
• Annual labor expenses were meaningfully reduced, supporting a relatively short payback period

This case illustrates how cable overmolding, when implemented with vertical injection molding, delivers both technical and financial advantages.

These benefits, however, don’t come automatically. Procurement teams must carefully evaluate several key factors before making an investment decision.

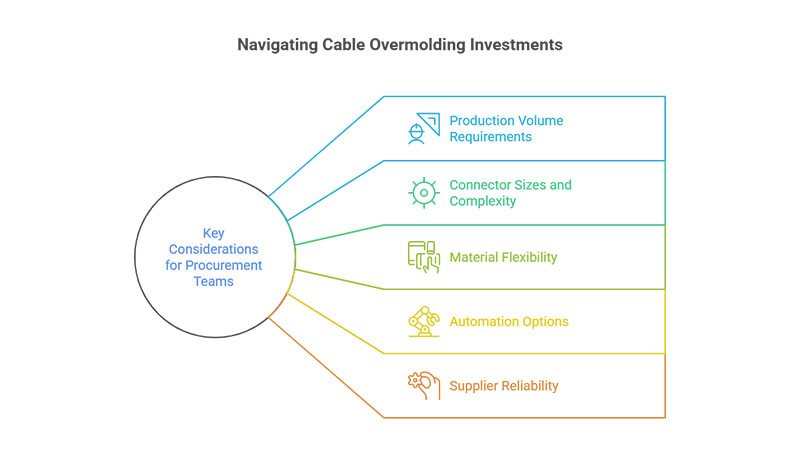

Key Considerations for Procurement Teams

Before investing in cable overmolding, management teams should evaluate:

1. Production Volume Requirements

   – Low-volume, high-mix vs. high-volume, single-SKU production

2. Connector Sizes and Complexity

   – Ensure machine capacity matches product design

3. Material Flexibility

   – Ability to mold with TPE, TPU, PVC, or silicone

4. Automation Options

   – Rotary tables, shuttle systems, or robotic handling

5. Supplier Reliability

   – After-sales support, training, and spare parts availability

By addressing these considerations, companies can ensure their investment in cable overmolding delivers sustainable value across production, quality, and profitability. For additional insights on selecting the right equipment for plug and connector applications, see our guide: 4 FAQ about Vertical Injection Molding Machines for Power Cord Connector.

Cable Overmolding as a Strategic Advantage

For manufacturers, cable overmolding is no longer optional—it is a competitive necessity for delivering reliable, high-performance products. From protecting against environmental stress to reducing long-term costs, the business case is clear.

And while different machine types exist, vertical injection molding machines are the most effective and future-proof way to implement cable overmolding. They combine efficiency, reliability, and scalability—helping companies reduce costs today while preparing for tomorrow’s automated manufacturing.

Overmolding isn’t limited to cables and connectors—it’s also widely applied in consumer products such as fitness equipment. For example, Taiwan TKC’s machines have been used to revolutionize dumbbell manufacturing with advanced over-molding techniques. Learn more in our article: From Sweat to Craftsmanship: How Taiwan TKC’s Injection Molding Technology is Quietly Revolutionizing the Dumbbell.

If your business is ready to increase reliability, improve efficiency, and maximize ROI, now is the time to invest in cable overmolding powered by vertical injection molding technology.

Partner with TKC to Build Smarter Cable Overmolding Solutions

With over 40 years of experience in vertical injection molding technology, Kiki has been a trusted partner for manufacturers worldwide in industries such as automotive, medical devices, industrial electronics, and consumer products.

We specialize in cable overmolding solutions, offering advanced vertical injection molding machines that combine precision, efficiency, and automation readiness. Our engineering team works closely with clients to design tailored solutions that improve product reliability, reduce costs, and accelerate time-to-market.

At TKC, we are committed to delivering not only machinery, but also the expertise and long-term support that manufacturers need to succeed in today’s competitive environment.

Explore our full range of Cable Overmolding Machines or contact us today to learn how we can support your production goals.
