How Cable Overmolding Machines Deliver Reliable, Durable Cable Assemblies
Cables are the lifelines of modern technology. From AI data centers and medical devices to automotive electronics, marine/yacht systems, and industrial automation, assemblies must survive stress, vibration, moisture, electromagnetic interference (EMI), and frequent handling. Reliability isn’t optional—it’s mission-critical.
So, how can manufacturers ensure their cable assemblies meet these extreme demands? The answer lies in cable overmolding technology—and, more specifically, in the precision of vertical clamp & vertical injection machines.
TKC Machinery has been innovating machines and molds for over 40 years. Here’s how our equipment delivers the reliable, durable cable assemblies industries worldwide depend on.
Why Cable Overmolding Is Essential

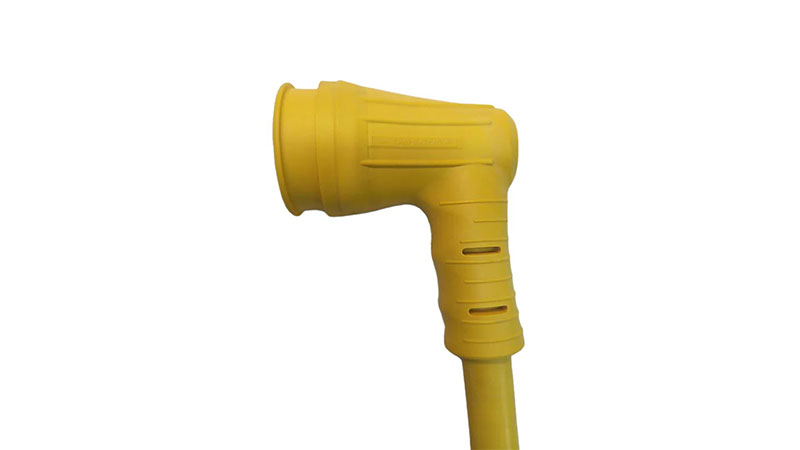

Throughout their lifecycle, cable assemblies face repeated bending, pulling, water exposure, vibration, chemicals, and EMI. Overmolding encapsulates cable terminals, connectors, or joints with protective thermoplastic or rubber, turning fragile interfaces into robust, long-lasting assemblies.
That’s why medical, automotive, electronics, and marine sectors rely on overmolding—and why equipment choice and molding precision make all the difference.
How TKC Machines Ensure Consistency
-
Accuracy in Every Shot
- Twin-cylinder injection for uniform melt distribution.
-
Precision computer control and direct-pressure clamping to hold tight tolerances and deliver clean finishes.
Result: Stable, repeatable output for fine parts such as medical cables and sensors.
-
Application-Ready Customization
- Programmable speeds and pressures across each injection stage.
- Insert-molding functions protect delicate wires and connectors.
- Material-matched barrel/screw options to suit specific resin requirements.
-
Job recipes can be saved for repeat runs.
Result: Flexible for everything from micro cables to heavy-duty industrial assemblies.
-
Factory-Friendly Layouts
- Compact vertical clamp, vertical injection footprint saves floor space.
- Sliding-table or rotary-table configurations increase throughput.
- C-frame, tie-bar-less open access—clear cable routing with no interference from columns.
-
Modular upgrades support automation and capacity scaling.
Result: High efficiency and adaptability in diverse production environments.
Inside TKC Cable Overmolding Technology
Different industries demand different solutions. TKC offers a full range of series:
- KT Series – Compact, precise, ideal for inserts and small cable overmolding.
- KC Series – Tie-bar-less, open-frame design for easy mold access and frequent changeovers.
- KR Series – Heavy-duty, long-stroke capacity for large or complex assemblies.
- KET Series – All-electric, energy-efficient, precise, and sustainable.
Integration options to boost reliability and yield:
- Professional mold development by TKC.
- Automated insert loading/unloading and ejection.
- Peripheral integration (e.g., jacket stripping, terminal crimping) for an end-to-end cell.
- Optimized workflows that reduce operator error and stabilize cycle time.
Real-World Proof: LONGWELL Case Study
LONGWELL, one of the world’s largest cable assembly manufacturers, has partnered with TKC for over 25 years:
- 100+ KC Series machines installed worldwide.
- Optimized for power-cord connector overmolding.
- 24/7 production with minimal downtime.
“We chose TKC Machinery because of their reliability, stable machine performance, and long-term service support.” — LONGWELL Taiwan Team
This long-term partnership shows how TKC delivers consistency, scalability, and proven reliability in mission-critical environments.
Technical Capabilities That Make the Difference
- Clamp force: 30–85 Tons — suitable for both delicate and heavy-duty parts.
- Shot volume & cable diameter flexibility: From micro-inserts to high-volume assemblies.
- Modular architecture: Sliding platen, rotary table, or standard vertical setups.
- Fast mold access: Tie-bar-less models accelerate changeovers.
- Precision control: Programmable injection profiles for repeatable quality.
- Material compatibility: PVC, TPEs, flame-retardant plastics, engineering resins, medical fire-retardant grades, and silicone.
The TKC Quality Difference
Reliability is also about the machine itself:
-
Durability
— Equipment structural design life up to 10+ years. -
Quality assurance
— ISO 9001 for all critical components. -
Smart tools
— Cloud OEE monitoring, predictive-maintenance alerts.
Frequently Asked Questions
Q1 : Can TKC machines handle micro-cables or fine wires?
Yes. The KT Series supports micro wire harnesses and miniature connectors.
Q2 : Are they suitable for high-temperature or demanding materials?
Absolutely. Advanced temperature control and programmable pressure support high-temperature and flame-retardant plastics.
Q3 : Can they overmold pre-assembled connectors or components?
Yes. Rotary tables and vertical clamping enable efficient overmolding of pre-inserted parts.
Q4 : How fast are the cycles and changeovers?
Typical KT/KC cycles run 10–20 s; modular setups simplify material/mold swaps.
Build Durable Connections for the Future
The secret to durable cable assemblies lies in how they are manufactured. By combining precision injection, modular flexibility, and smart automation, TKC cable overmolding machines consistently deliver reliable, durable, and compliant assemblies that global industries rely on.
Let’s Start Your Overmolding Project
Whether you’re exploring a new application or upgrading an existing line, TKC Machinery is ready to help:
- Contact us via the inquiry form or email on our contact page.
- Share your requirements: materials, cable size(s), target output, current challenges.
- Book a technical consultation to discuss machine fit, mold design, and customization.
Our engineers will guide you through machine selection, material compatibility, and process planning. We’re committed to long-term partnerships with responsive after-sales service and local support where available.
